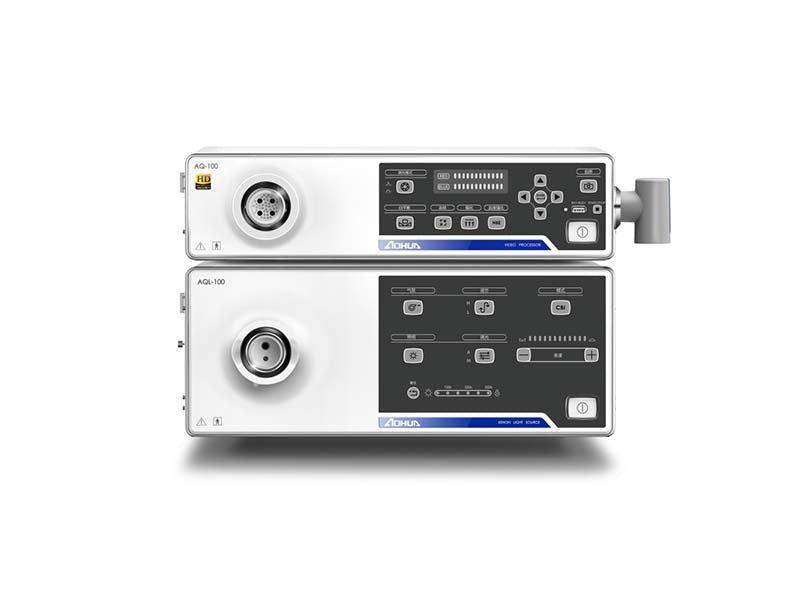

AOHUA AQ-100 Endoscopy (1)

AQ-100 with Optical chromoendoscopy technique, is the first HD endoscopy system with independent intellectual property rights in 2011, aiming to provide early cancer diagnosis and treatment for all hospitals.

HD Display Megapixel Rendering

HD image display, more details, clear insight into slight changes.

Pixel regeneration, detail presentation

AQ-100Endoscopy System is provided with high-pixel sensor and firstly integrates full-digital image processing technology. Depending on DVI digital signals, fully restore the endoscopic color and render high-quality endoscopic images.

Compound band imaging (CBl)

Optimized optical digital filter design + high-speed and accurate image digital algorithm.

CBI mode

The light source device can output light with the wavelengths of 440nm and 540nm, depending on a dedicated optical filter. According to the spectral characteristics of compound light absorption of hemoglobin, 440nm wavelength light is easily absorbed by mucosal fibrous tissue, and 540nm wavelength light acts on the submucosal blood vessels. Therefore, in the CBI mode, we can not only identify the mucosal lesion range but also highlighted the submucosal blood vessel distribution.

HbE Hemoglobin enhancement

The HbE function can highlight the heme in the blood, and the vascular morphology of the pathological tissues is obviously highlighted.

Electronic magnification

Achieve HD detail magnification, and identify lesions.

HD storage

USB integrates photographing function and recording function,and can be connected to a keyboard so that characters input by the keyboard can be displayed on the screen.

Automatic Brightness Control

Automatically adjust the intensity of illumination according to the light intensity, so as to avoid over-exposure of the tissues under irradiation light and effectively control the temperature at the end of the endoscope.

Ergonomics handle operation more comfortable and convenient

The AQ-100 endoscopy is provided with a newly designed handle which integrates advanced technology so as to reduce the doctors' operating fatigue.

Make endoscopic Diagnosis and Treatment more accessible and convenient.
