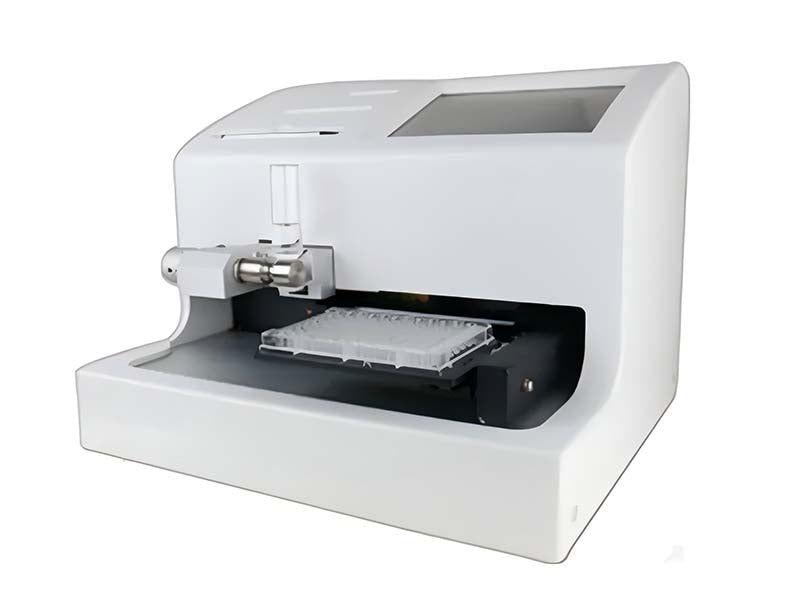

GHM Automated Liquid Handling System

GHM Automated Liquid Handling System features complete functions, good performance, cost efficiency in delivering inoculum for 96-well plates. The system provides four dosing patterns including custom dosing pattern to satisfy users' need.

Application:
1. 96-well sample loading, the specimen is bacterial liquid, medicine, etc.;
2. Besides clinical use, the Automated Liquid Handing System can be also used for non clinical use purposes, such as scientific research, daily applications, manufacturing supporting equipment, etc.;

Features:
1. Applicable to all 96 microwell panel;
2. Customized liquid loading mode;
3. 50uL,100uL,150uL,200uL for liquid volume;
4. less than 0.5% for precision and less than 0.1% for repeatability;
5. less than 37 seconds /96 hole for liquid loading;
6. Dimensions: 320 x 370 x 300 (mm);
7. Power Supply: 220V, 50Hz;
8. Power: 150W;
9. Weight: 11.2kg;
