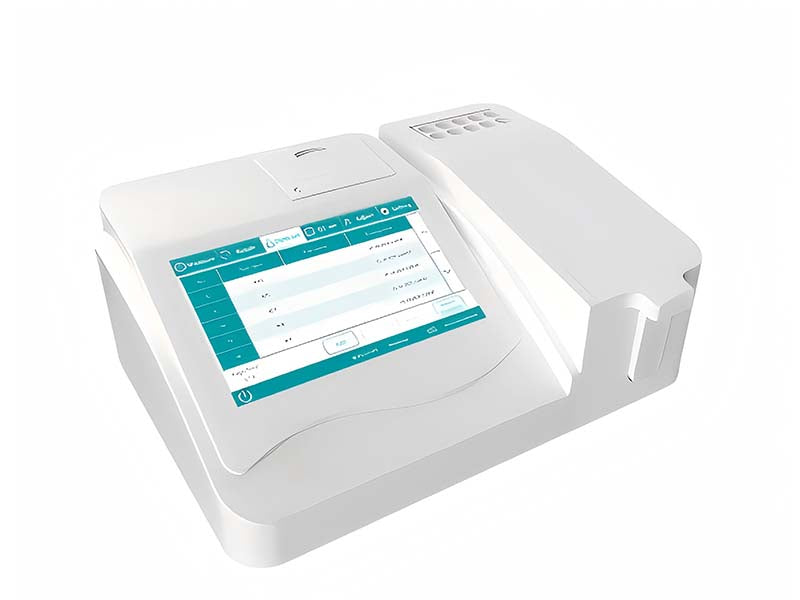

GHM-10S Semi-auto Chemistry Analyzer

GHM-10S Semi-auto Chemistry Analyzer are in vitro diagnostic devices that are suitable for detecting human proteins, lipids, sugars, enzymes and inorganic elements in samples under laboratory environmental conditions.

Principle:
The principle of the BAS-10S Semi-auto Chemistry Analyzer mainly uses the Beer-Lambert Law to mix the reagent with the serum sample of the patient to be tested in a certain ratio, and the mixed solution is incubated in a cuvette at a certain temperature, and it continuously measures the absorption. Finally, the concentration or time of the measured substance is calculated automatically based on the absorbance value.

Features:
· Operation,semi-automatic;
· Applications,for clinical diagnostic;
· Configuration,benchtop, portable;
· Sample type,urine, plasma, environmental, cerebrospinal fluid;
· Options,with touchscreen, with barcode reader, USB, with incubator, with LIS connectivity;
· Convenient,7-inch color touch screen;
· Reliable,Customized testing items supported;
· Cost-effective, Less and easy maintenance;
· User-friendly,Humanized software interaction;
· Robust, Storage up to 100,000 records;
· Efficient,Real-time display of reaction curve;
· Channe,A single channel;
· Storage,More than 100,000 test results;
· Output,Built-in thermal printer or external printer;
· Reaction volume,The minimum reaction volume is 200uL;
· Temperature control, pre-incubator 37C,colorimetric incubation system 25C, 30C, 37C and roomtemperature;
· Sleep function,Set the sleep time of the halogen lamp to extend its service life;
· Interface,Equipped with standard USB interface;
· Colorimetric mode,cuvette;
· Absorbance range,0~4.0A;
· Absorbance accuracy,0.0001A;
· Size,340mm×260mm×142mm;
· Power supply,DC 12V 6A;
· Net weight,4.6kg;
