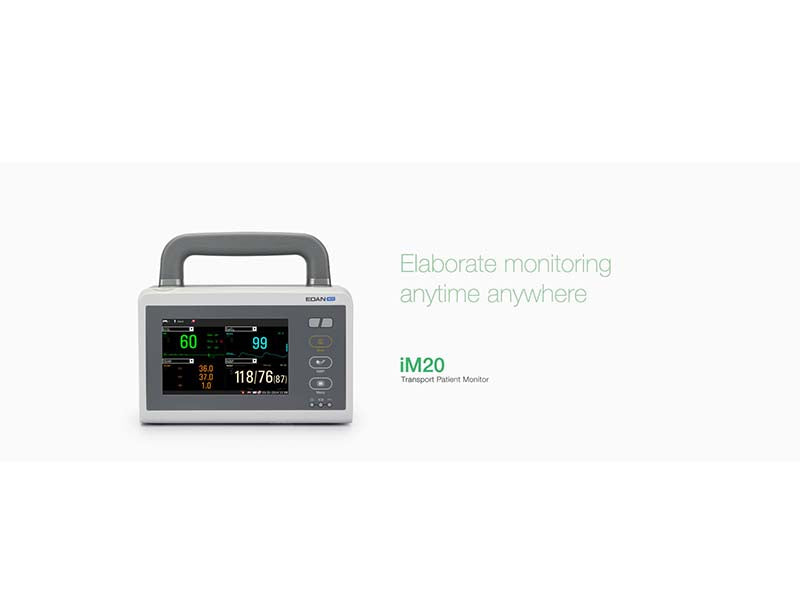

Edan iM20 Transport Monitor

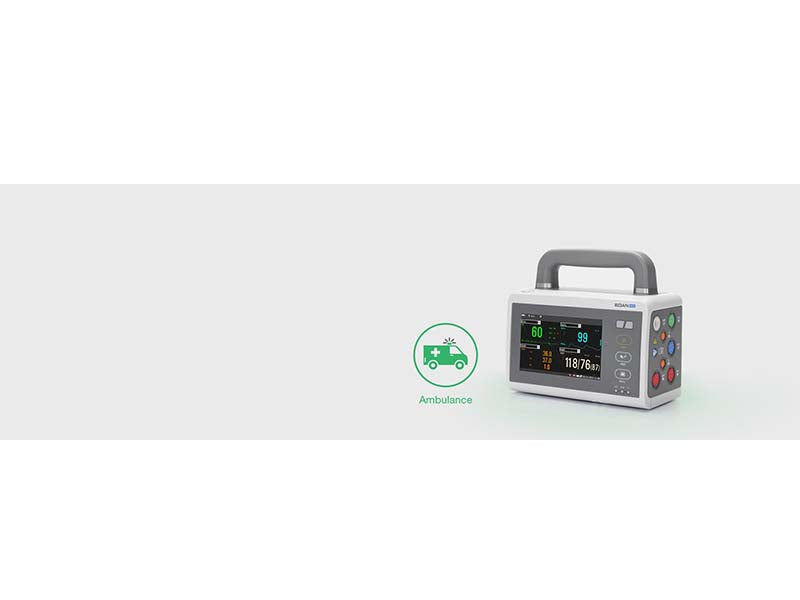

Edan IM20 Ambulance Transport Monitor

Serves as both a transport monitor and a multi-parameter module for the Elite Series, IM20 provides a comprehensive and seamless monitoring solution both inside and outside hospital, connecting ambulatory cares to intensive cares.

Highlights

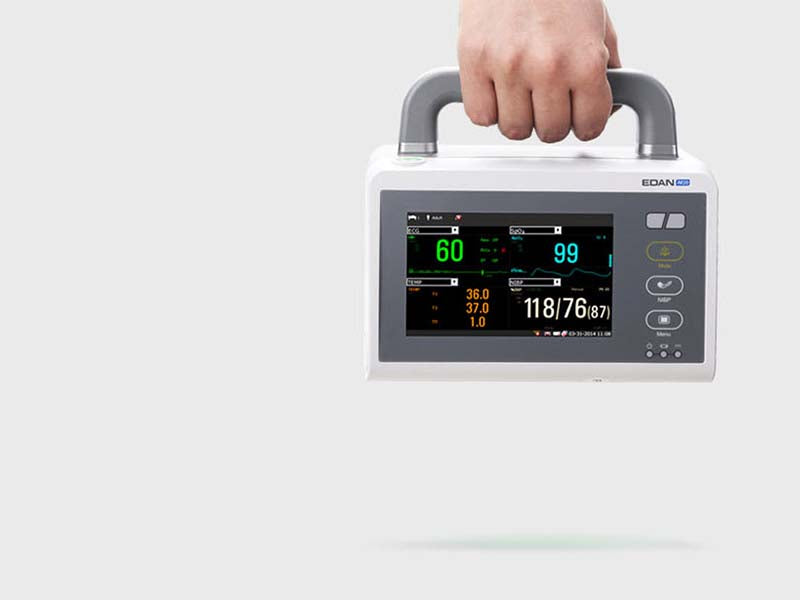

Weighing less than 1.5kg with battery installed, iM20 is one of lightest transport monitor you can find on the market.

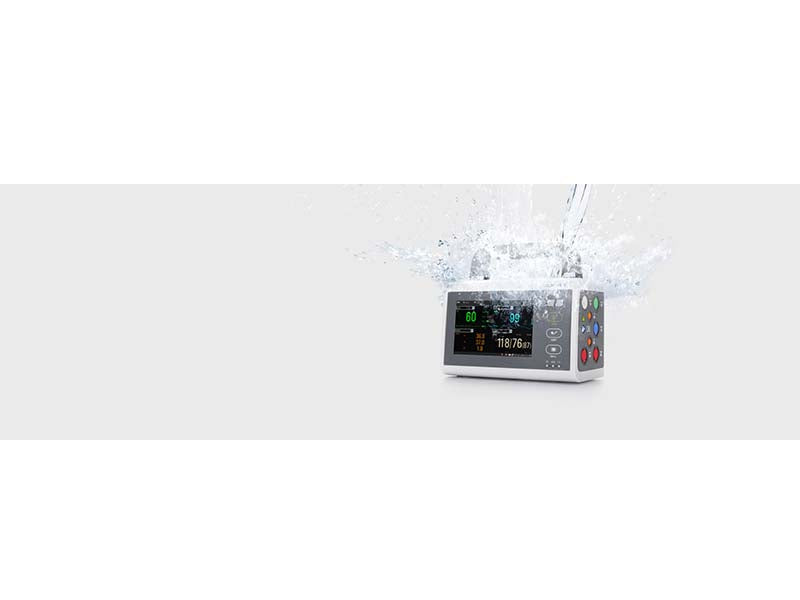

Engineered strictly as to IP44 waterproof and dust proof standard, as well as a solid shock resistance performance
iM20 is suitable for patient transport in the harshest environments.

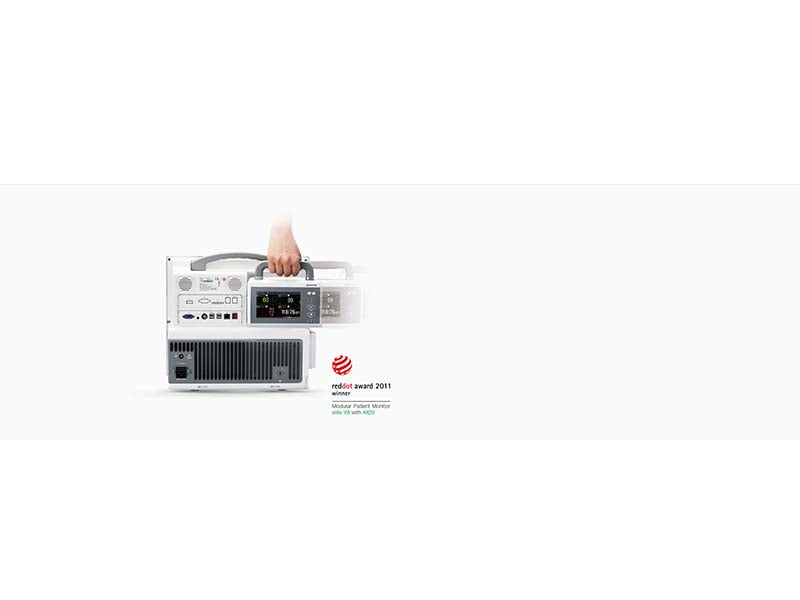

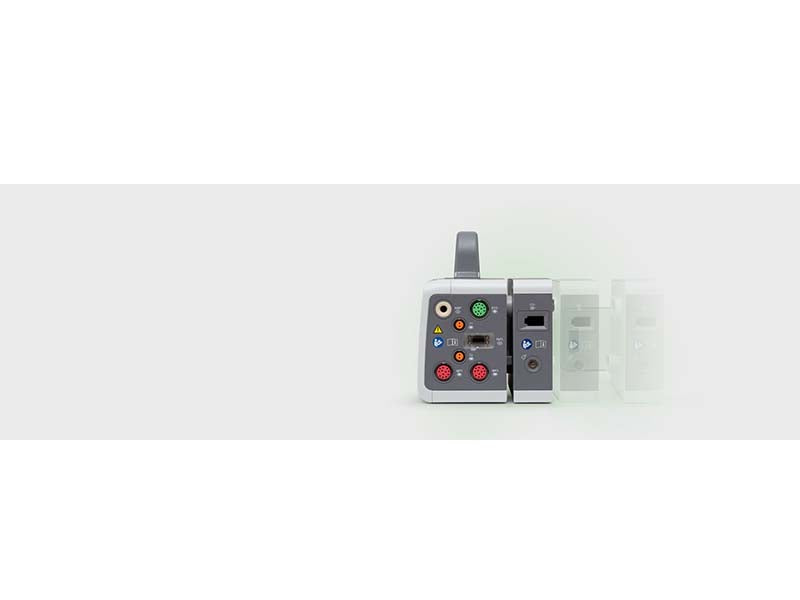

It is a standalone monitor or modular. On plug-and-play, iM20 switches role easily between a module and a monitor, connecting data together among different applications.
Power saving performance, iM20 requires no fan for heat expiration
The battery life is also extended for long term transport even without external power supply.
The large non-fading built-in memory helps store the monitoring data during the whole transport session.
Though small and compact, iM20 not only supports basic parameters but also 2-channel IBP, expanding its usage for various medical cases.
The modern full-touch operation without physical buttons is unique on this kind of transport monitors, bringing user experience to a brand new level.
Built-on handle does not need to be removed even when plugging into elite Series.

Standard Configuration
Main Unit with No-fan design
5" Color TFT Touch Screen
3/5-lead ECG, Resp, NIBP, Edan Sp02, 2-Temp (without accessory, PR
Arrhythmia, S-T Analysis, OxyCRG, vital signs, large Font Display
Built-in data storage and review
Built-in battery
Built-in WiFi
Bi-directional communications with central monitoring system
HL7/XML support

What's In The box?
IM20 transport monitor
ECG cable, 3-lead, snap, 12pin, defibrillator-proof, IEC, 3.4m, reusable
ECG electrodes, adult, disposable, 10 pcs
Sp02 silicone soft-tip sensor, adult, 1m, reusable
Sp02 7-pin extension cable
NIBP cuff, adult, 27cm-35cm. reusable
NIBP tube
Power adapter (Must work with either on of the IM20 power plugs)
IM20 power plug (USA standard)
User manual
