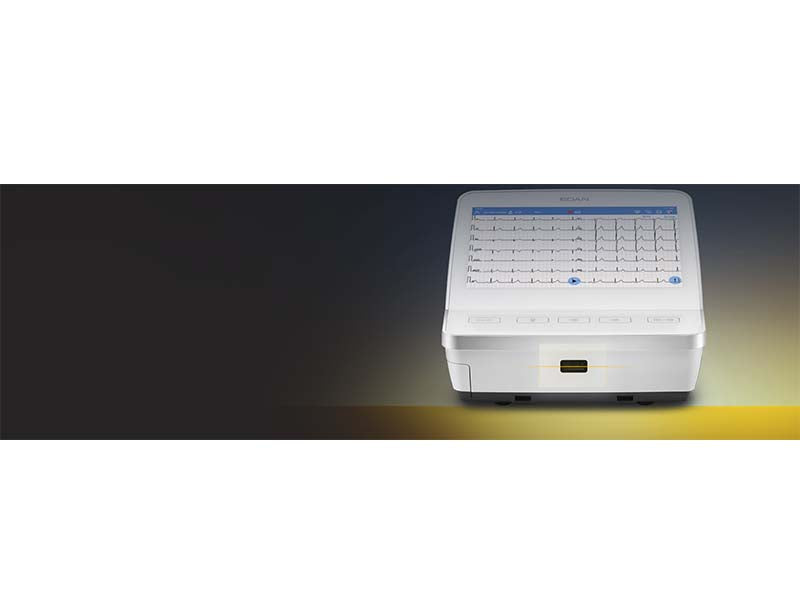

SE-1200 Pro 12-channel Electrocardiograph

The 12-channel ECG SE-1200 Pro by EDAN is a light, portable high-end ECG device that records ECG signals of adults and children via electrodes on the body surface. The electrocardiogram recorded by the electrocardiograph can support analysis and diagnosis of heart diseases. The ECG was designed for a number of application scenarios and allows for simplified work processes that are especially tailored to the needs of care staff. The device shows for instance whether pacemakers have been recognised or the ECG device has not been connected correctly.

Product details

• Portable 12-channel electrocardiograph
• Suitable for the use on adults and children
• Ideal for:
  • ECG rooms
  • Wards for physical examinations
  • Emergency wards and in-patient departments in hospitals and healthcare facilities
• With integrated barcode scanner
• Smart functions like sampling procedure, disease detection, pacemaker detection, and indication about reversed electrodes

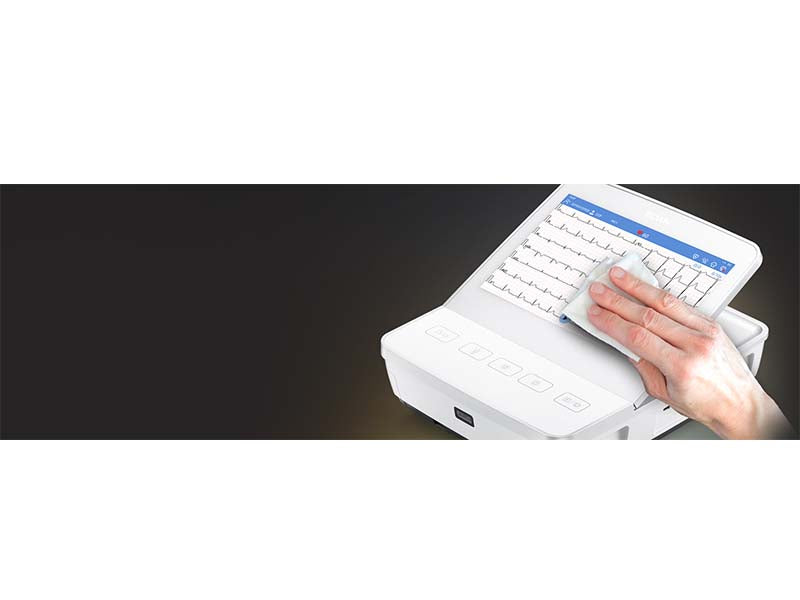

• Easy disinfection due to water-resistant surface

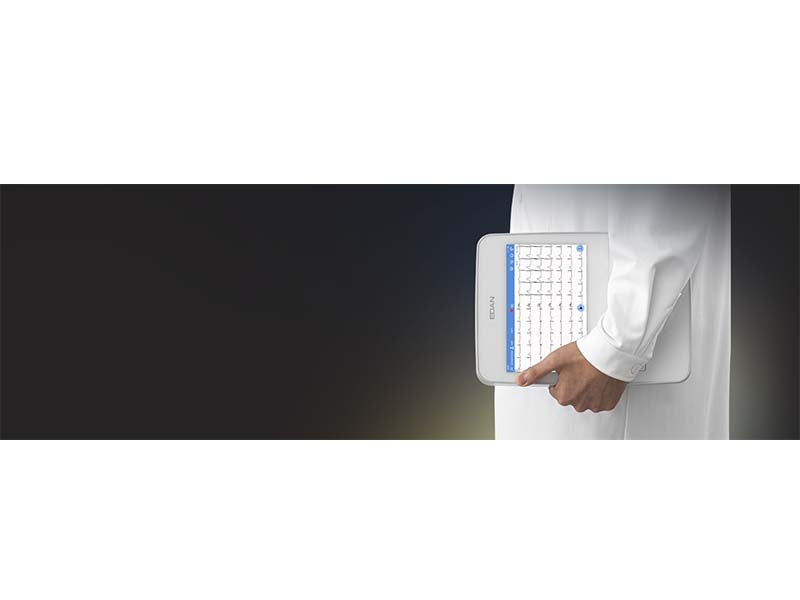

• Compact, light design for easy transport
• Optionally compatible with trolleys
• Measurements: L 298 x W 209 x H 103 mm
• Weight: 3 kg (without paper and battery)

Technical details

• ECG measuring method: 9/12-channel
• Display: 8.0" LCD touchscreen with 1,280 x 800 resolution
• Data transfer: LAN, wi-fi, ethernet, 4G network
• Frequency range: 0.01 Hz to 500 Hz
• Heart frequency measurement: 30 bpm to 300 bpm
• Measuring accuracy: ± 1 bpm
• Filter:
  • AC filter: 50 Hz / 60 Hz / off
  • DFT filter: 0.01 Hz / 0.05 Hz / 0.32 Hz / 0.67 Hz
  • EMG filter: 25 Hz / 35 Hz / 45 Hz / off
  • Low-pass filter: 350 Hz / 300 Hz / 270 Hz / 150 Hz / 100 Hz / 75 Hz
• ECG storage format: DAT, SCP, FDA-XML, DICOM, PDF, JPG, BMP, PNG, and TIFF
• Power supply: mains or battery operated
• Battery type: lithium ion
• Pacemaker recognition:
  • 1-channel
  • Amplitude: ± 500 μV to ± 700 mV
  • Width: 30 μs to 2,0 ms
  • Sampling frequency: 80,000 Hz, rhythm lead

Package contents

• 1 EDAN 12-channel ECG SE-1200 Pro
• 1 power cable
• 1 ECG cable
• 6 chest electrodes for adults
• 4 extremity electrodes for adults
• 1 lithium ion battery
• 1 AC/DC adapter
• 120 pages print paper (L 210 x W 140 mm)

The depicted trolley is not included in the package contents.
