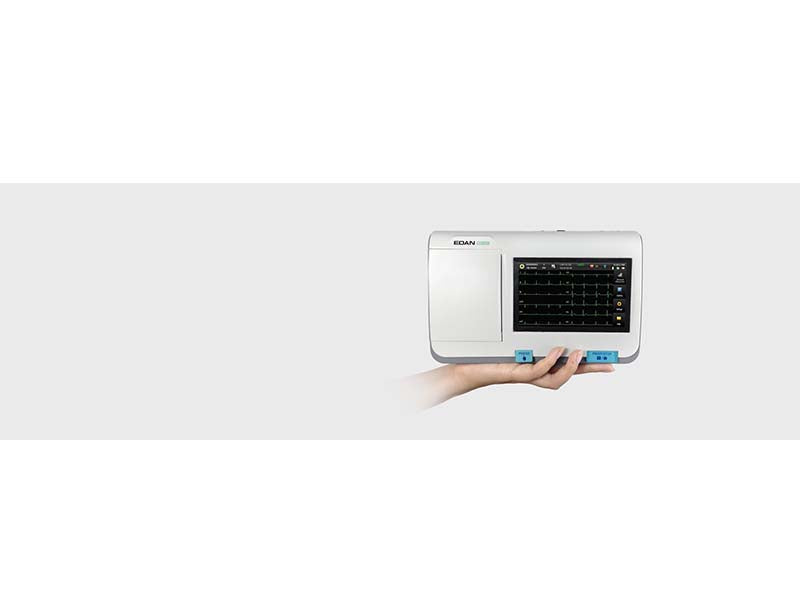

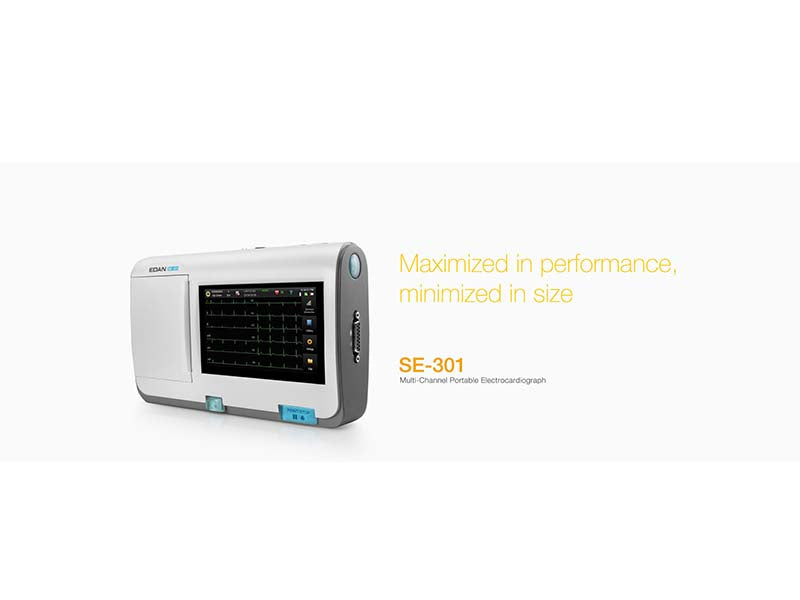

SE-301 Series Portable Multi-Channel ECG

The Edan SE-301 is a reliable 3-channel resting ECG with a compact design and integrated thermal printer, making it ideal for mobile use. Its big multicolor touchscreen allows for a particularly user-friendly operation. SE-301 ECG supports 12 simultaneous leads, while color-coding on the display offers information about signal quality, enabling safe and precise diagnoses. External devices such as a barcode reader or an additional printer can be connected via the ECG’s USB ports.

Product details

• Compact 3-channel resting ECG
• Integrated thermal printer

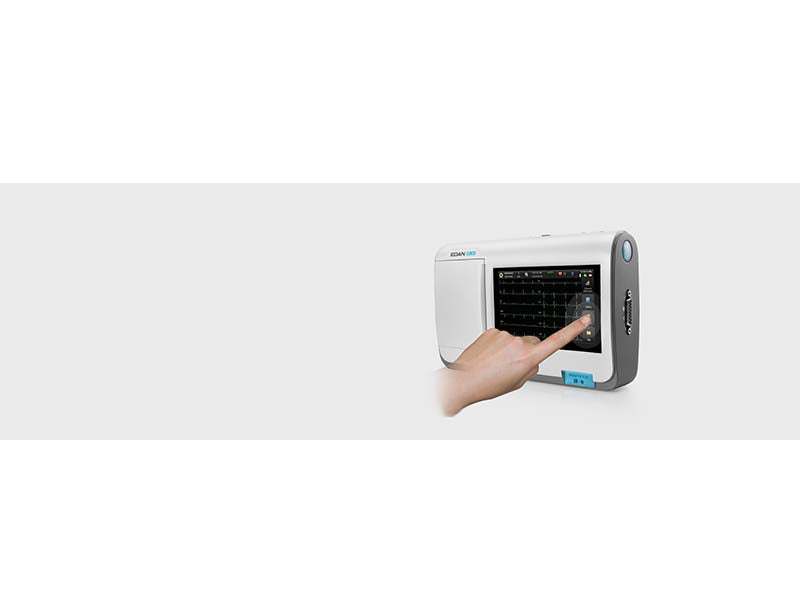

• 5" multicolor touchscreen
• Color-coded display visualizing signal quality

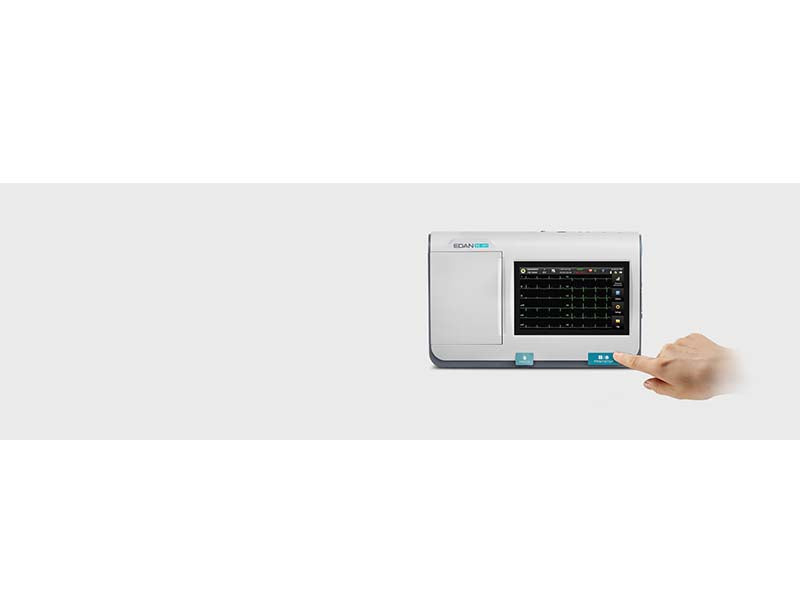

• One-button operation
• Complies with metrological control

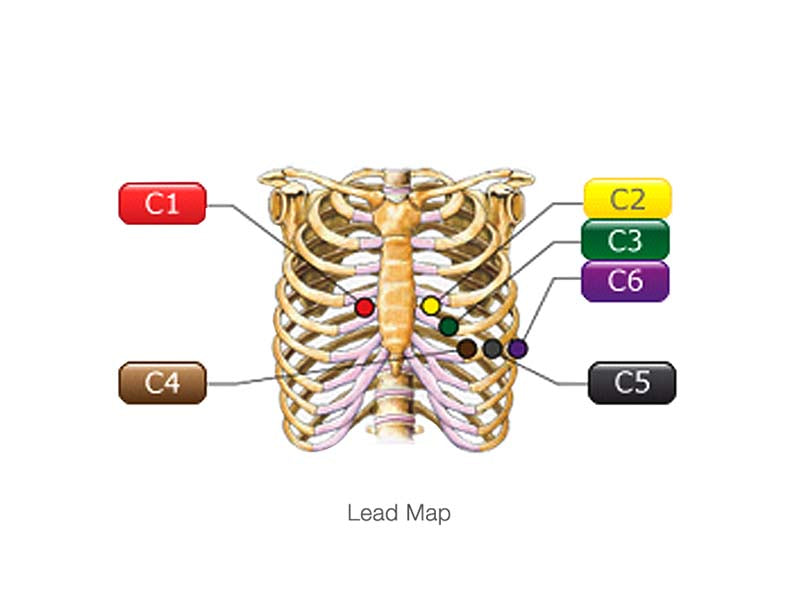

• 12 simultaneous leads
• Automatic support for interpretation and evaluation
• Easy handling during mobile use
• Measurements: L 143 x W 224 x H 54 cm
• Weight: approx. 1 kg

Technical details

• Internal storage: approx. 500 ECG measurements
• Ports: 2 USB, 1 microSD
• CMRR (Common Mode Rejection Ratio): ≤ 140 dB
• Bandwidth: 0.01 - 300 Hz
• Sampling rate: 16,000 Hz
• Power supply: mains or battery power
• Battery type: lithium-ion
• Battery capacity: approx. 8.5 hours in operation

Delivery contents

• 1 Edan SE-301 ECG
• 1 patient cable
• 6 suction electrodes
• 4 clip electrodes
• 1 roll of recording paper
• 1 power supply unit
• 1 li-ion battery

An obligatory instruction is needed for this product in Germany according to MPBetriebV. The instruction is not included in the price.

A fee-based instruction by the manufacturer is possible after agreement. Please contact us for more information.
