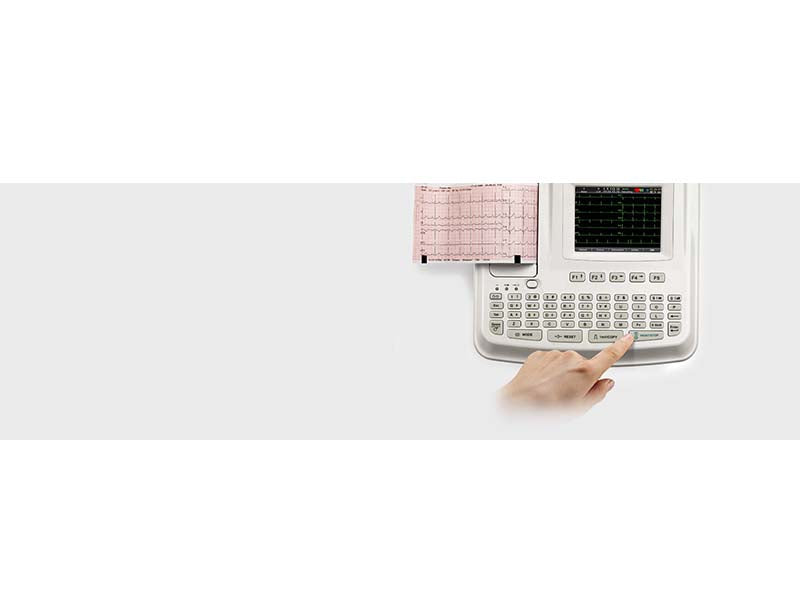

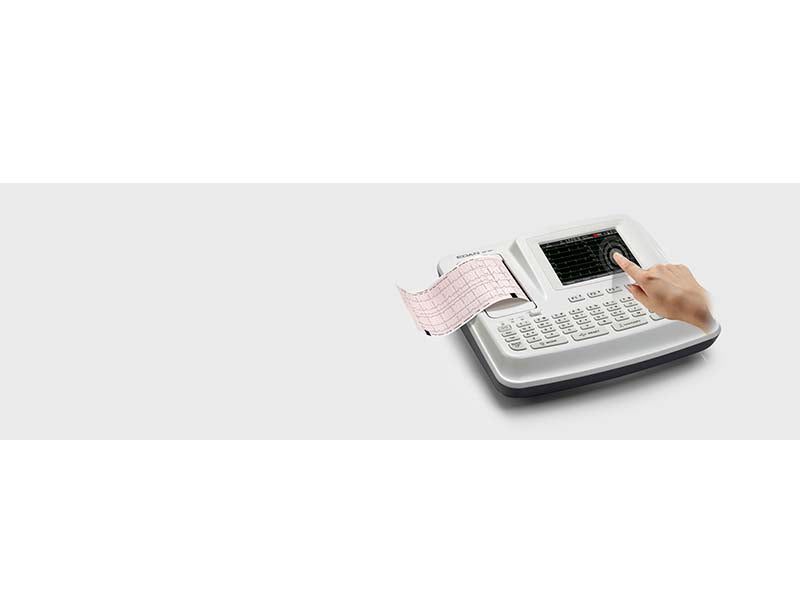

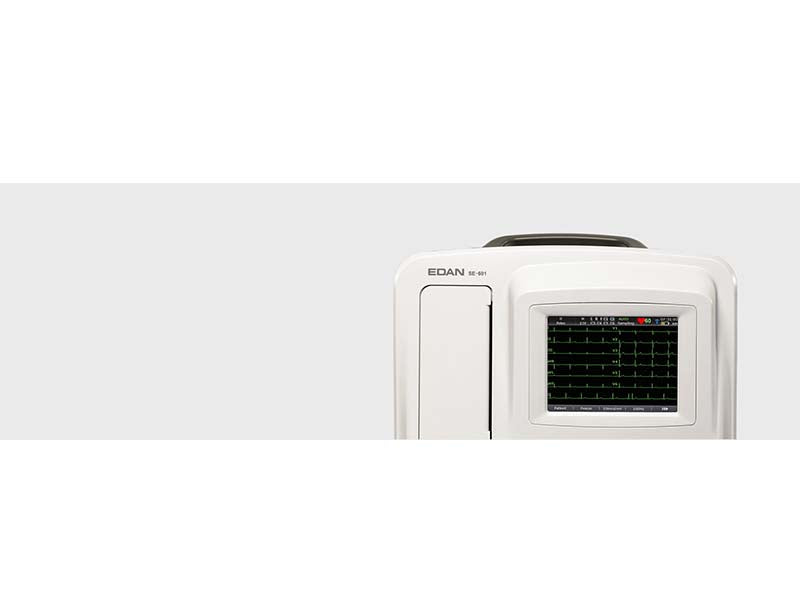

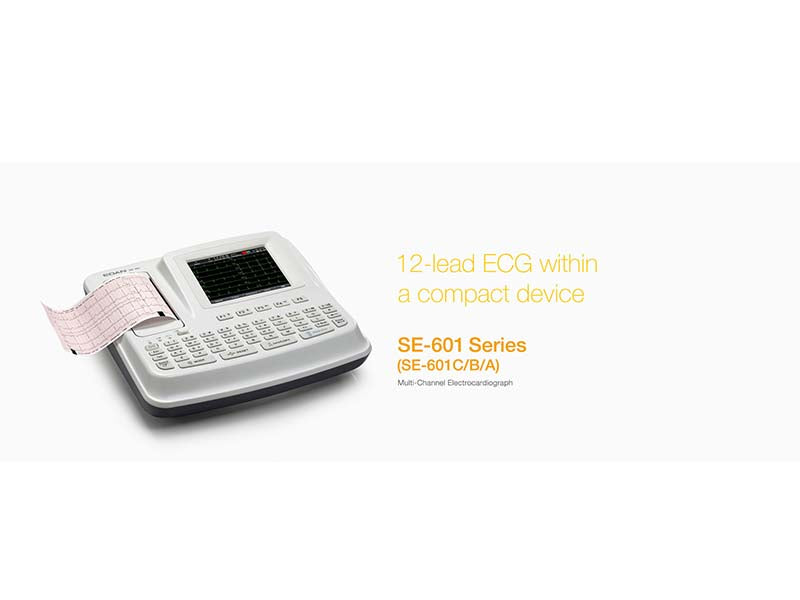

The Edan SE-601 B is a 6-channel ECG that is ready for use out of the box. With its large 5.7" display, integrated printer, and alphanumeric keyboard, nothing stands in the way of a flexible and mobile usage. ECG waves can be tracked in real time on the monochrome display and the internal storage offers space for up to 100 patient records. The measured examination values can be exported in a clear test report via the RS-232 interface or thermal printer.
Product details
- Mobile 6-channel resting ECG device
- Integrated, high-resolution thermal printer
- Automatic measurement and interpretation
- Pacemaker control
- Data transfer via ethernet or RS-232
- Real-time display of the ECG

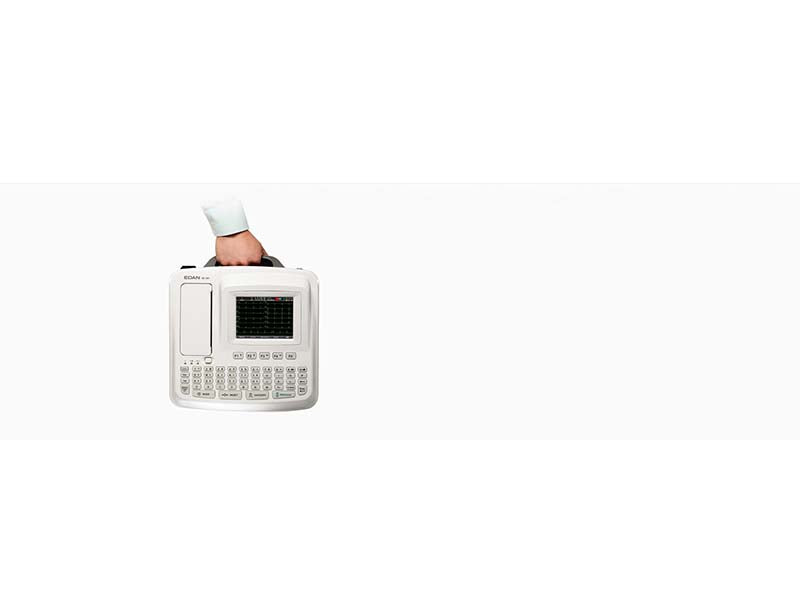

- Easy transport thanks to practical handles
- Measurements: L 322 x W 310 x H 101 mm
- Weight: approx. 6 kg
Technical details
- Internal storage: approx. 100 ECGs
- Sampling frequency: 1,000 Hz/channel, 10,000 Hz for pacemaker control
- Interfaces: ethernet, RS-232, USB
- Work mode: auto, manual, rhythm
- Power supply: mains or battery power
- Battery life: up to 6 hours
- QWERTY keyboard layout
Delivery contents
- 1 Edan SE-601 B ECG
- 1 patient cable
- 4 clip electrodes
- 6 suction electrodes
- 1 battery
- 1 power cord
- ECG recording paper
An obligatory instruction is needed for this product in Germany according to MPBetriebV. The instruction is not included in the price.
A fee-based instruction by the manufacturer is possible after agreement. Please contact us for more information.
