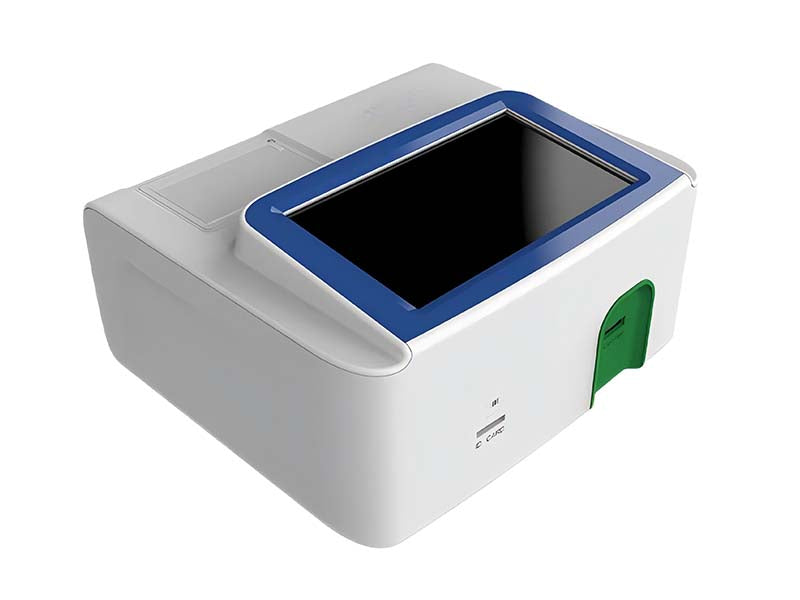

GHM-I POCT Fluorescence Immunoassay Analyzer
GHM-I POCT Fluorescence Immunoassay Analyzer
The designated purpose of this instrument is strictly for in vitro diagnostic use. It is intended for proficient laboratory settings within medical institutions, such as central laboratories, emergency departments, clinical units, and health assessment centers. GHM-I POCT Fluorescence Immunoassay Analyzer uses an LED as the excitation light source. The emitted light from the fluorescence microspheres is collected and converted into an electrical signal. The signals are closely related to the amount of fluorescence dye molecules present on the spot under examination. After a sample is applied to the test cartridge, and the concentration of the analyte is calculated by a pre-programmed calibration process.
Features:
· Operation: automated;
· Size 240mm*214mm*120mm;
· Weight 1.5 kg±300mg;
· Power Conditions DC12V, 5A;
· Repeatability CV< 1%;
· Stability CV< 1%;
· Operating Environment, Temperature 5~40℃;
· Relative Humidity 10~80%;
· Atmospheric Pressure 860~1060hPa;
· Operating Altitude<3000m;
· Storage Conditions,Temperature -10℃~50℃, Humidity <85%;
· Operation, automatic;
· Applications,for clinical diagnostic;
· Analysis mode,fluorescence;
· Sample type,clinical;
· Sampling mode,continuous access;
· Configuration,benchtop;
GHM-I POCT Fluorescence Immunoassay Analyzer Brochure Download Link:
https://drive.google.com/file/d/1F7Js8SEactNkcrDzYw6_Zv1q3KnjopvB/view?usp=drive_link
GHM-I POCT Fluorescence Immunoassay Reagents Price List:
https://drive.google.com/file/d/1IA6rzxUlrr_F-Lve1DvOgJLzRezD962h/view?usp=drive_link
