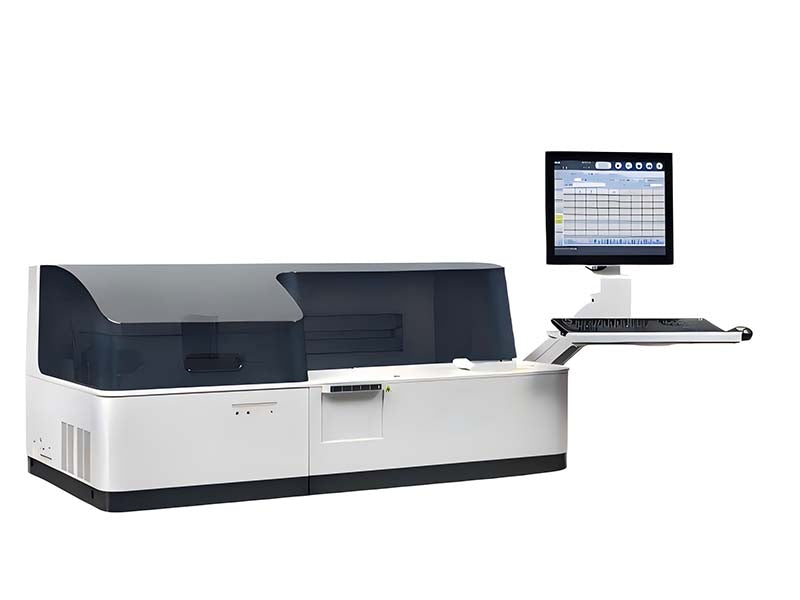

GHM-1200i Chemiluminescence Immunoassay System

General Information
· Throughput Up to 180 tests/hour
· Measurement Principle: Micron superparamagnetic particles platform  with alkaline phosphatase (ALP) labeled  reagents and AMPPD substrate

Sample Assembly
· Sample Feeder
· Continuous sample loading and offloading  by sample racks
· Sample Rack: 10 positions per rack, same as BS-800/BS-2000/CL-2000i series
· Sample Capacity: Up to 60 samples in one batch
· Sample Probe: Steel probe, liquid level detection, clot detection, horizontal and vertical collision protection
· Sample Volume: 10µl~200µl, with increment of 1µl
· Sample Dilution: Automatic dilution with 1: 2 ~ 1: 80

Reagent Assembly
· Reagent Disk: 25 reagent positions, continuous loading,  real-time mixing for magnetic particles, Cooling System 2°C~8°C
· Reagent Pack: 50 tests per pack, 100 tests per pack
· Reagent Scanning: Built-in/external bar code reader scanning
· Reagent Probe: Steel probe, liquid level detection, bubble detection, horizontal and vertical collision protection
· Reagent Volume: 20µl~200µl, with increment of 1µl

Substrate System
· Substrate Bottle 300/500 tests per bottle, bottom piercing
· Substrate Loading Capable of continuous loading during testing
· Substrate Heating Constant heating
· Aspiration Volume 200µl
