Small and exquisite
Oustanding performance
- Clinical Applications

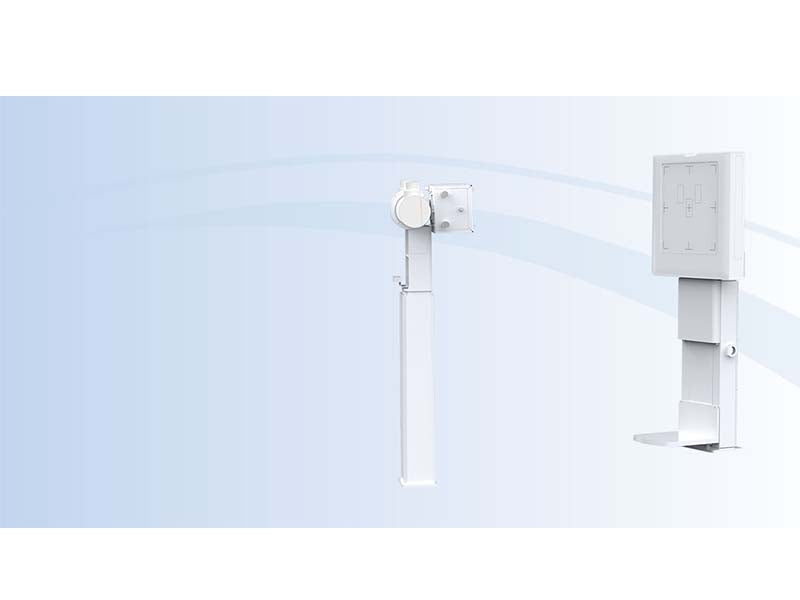

Double column structure
● Compact and space-saving
● Excellent performance, and convenient installation
Self developed core components
● Better compatibility and low maintenance cost
Widely used in radiography examination
● Applicable positions: head, chest, abdomen, spine, lower limbs, patella, etc
Automatic tracking function
The tube can be automatically back to center-position conveniently and quickly when the chest radiograph frame is placed.

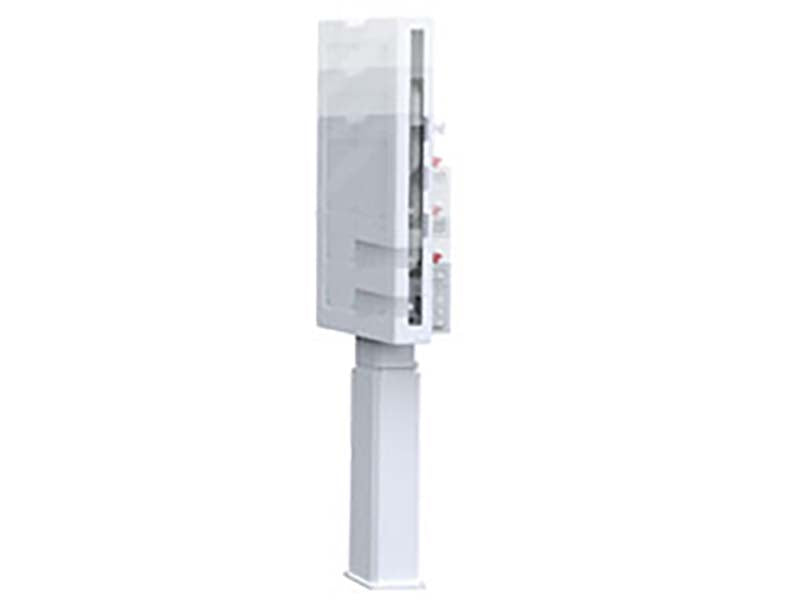

Bucky stand intelligent lifting (optional)
The bucky stand can move 300 mm longitudinally.
Distance from the flat panel center to the ground: 100cm to 130cm.
Can image from the neck to the hip.

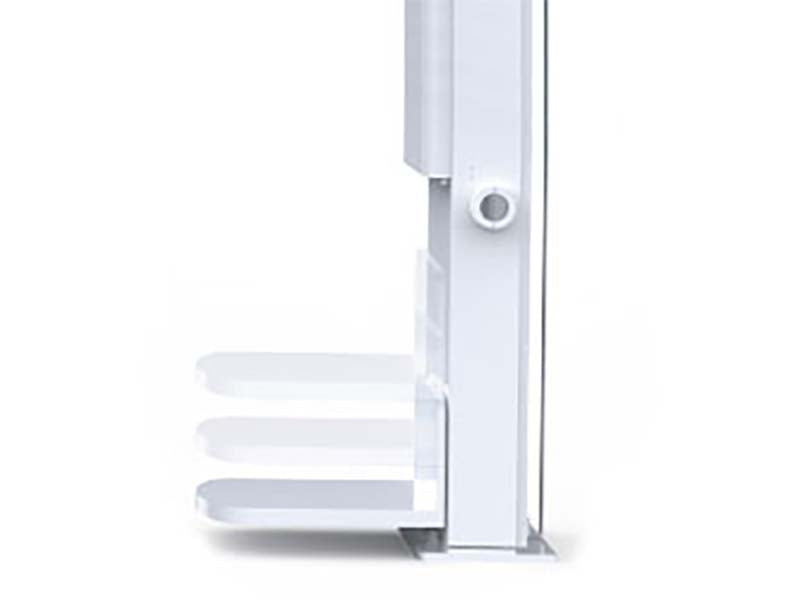

Longitudinal movement of foot pedal(optional)
The foot pedal can move 300 mm longitudinally.
Stable and Reliable Image Chain
- Self-developed ultra-high frequency and high voltage generator
● 500kHz ultra high inverter frequency
● Strong penetration ability
● Low-dose radiation
● Stable performance
● High-quality image
● High efficiency
- High-quality x-ray tube
● Large heat capacity
● High-speed tube
● Suitable for long time and high-intensity work
● Long service life
- Premium flat panel detector
● 17×17 inch large FOv, avoid multiple exposures to reduce radiation
● 16bit A / D conversion, achieve higher gray scale and clearer image hierarchy
Safety control
Accurate and efficient
DAP – Dose visualized, safety assured
● The pioneer usher in intelligent radiation dose monitoring system.
● Synchronous dose monitoring system, guaranteeing more accurate diagnosis.
lonizaiton chamber AEC system
● Automatically control mAs in a more efficient way.
● Automatically adjust the brightness through different body part.
● Simplify operation and improve overall effeciency.
Feature enhancements
Ultimate experience
Cardiothoracic ratio measurement
● Cardiothoracic ratio is a common indicator for evaluating cardiac enlargement, and is mostly used for diagnosis of exclusion or follow-up evaluation of patients. (For example, if the cardiothoracic ratio is found to be enlarged during the examination, further examination can be carried out in combination with the medical history and symptoms to confirm the diagnosis)
Spine measurement
● Spinal measurement can visually display the overall anatomical shape and scoliosis position of the spine, judge the balance and flexibility of the spine, and have certain value in the diagnosis, preope-rative evaluation, and postoperative judgment of scoliosis.
Cloud Image lnterconnection

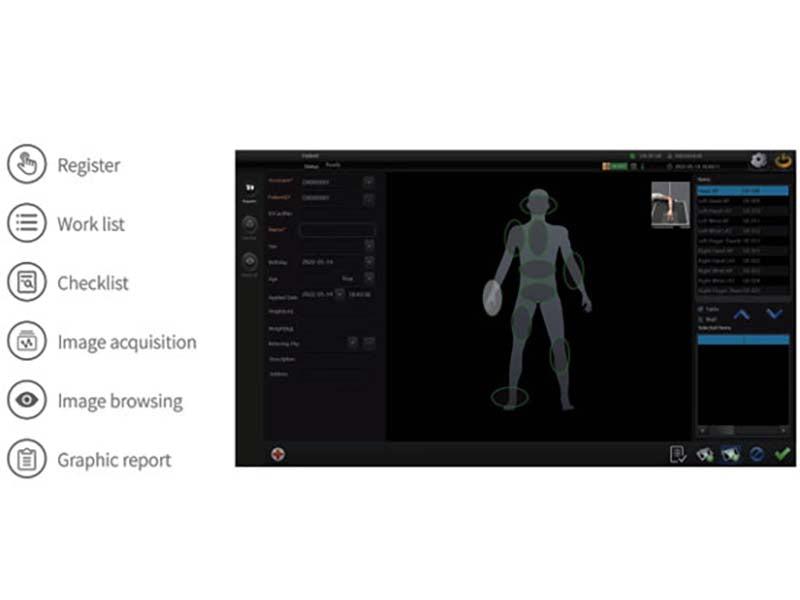

- Pre-view Various Examine Modes
● The system brings convenience to staff by multiple intelligence control modes, simple and fast control interface and efficient image collection will acceler-ate the speed and improve accuracy of clinical radiography.
● Meet the different requirements of outpatient, eme-rgency, physical examination on different cases.
- Fast Image Acquisition
● High standard software system, faster image acqui-sition, improved workflow continuity and overall inspection quality.3-5 seconds speed conversion,1-2 seconds faster than similar DR, offering faster examine experience for clinic.
● Fast automatic image processing.
● Automatic image output.
● The system can be maintained remotely, it can perform fault self-diagnosis and display fault codes, quickly and accurately determine the fault status and has self-protection functions.
● lt can share information with PACS system, bring benefits for remote diagnosis.
