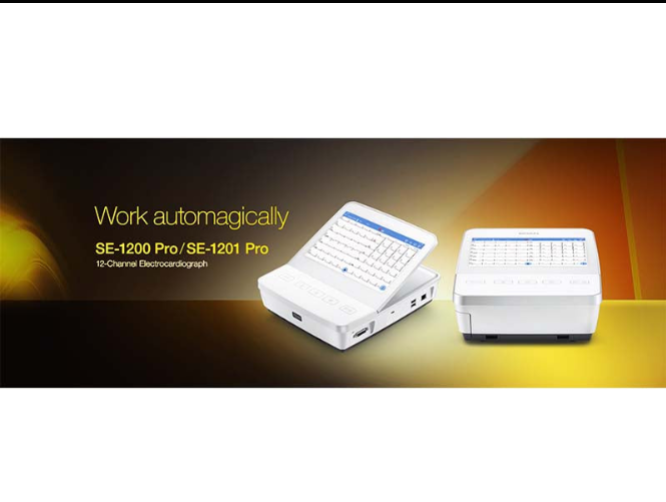

SE-1201 Pro 12-lead Electrocardiograph

The 12-lead ECG SE-1201 Pro from EDAN is a lightweight, portable, high-end ECG device especially designed for recording ECG signals on adults and children. The recorded electrocardiogram can be a valuable aid in the analysis and diagnosis of heart diseases. The SE-1201 Pro was designed with versatile use scenarios and different working conditions in mind: for example, it automatically records ECGs, detects pacemakers and indicates whether the ECG device is connected correctly. It offers user-friendly operation, streamlined workflows and reliable automatic measurements and diagnoses for efficient and accurate patient care.

Item details

• Portable 12-lead electrocardiograph
• Suitable for use on adults and children
• Ideal for:
• ECG rooms
• Departments for physical examinations
• Emergency rooms and in-patient departments in hospitals and healthcare facilities
• With built-in barcode scanner
• Display rotates 25 degrees clockwise
• Automatic measurement and interpretation
• Smart features such as intuitive sampling procedure, disease detection, pacemaker detection and reverse electrode indication
• Easy sterilisation thanks to waterproof surface
• Compact, lightweight design for easy transport
• Compatible optionally with trolleys
• Dimensions: L 298 x W 258 x H 82.5 mm
• Weight: 4 kg (without paper and battery)

Technical details

• ECG measurement method: 9/12-lead
• Display: 10.1” LCD touch screen with 1920x1200 resolution
• Data transmission: LAN, Wi-Fi, Ethernet, 4G network
• Frequency range: 0.01 Hz to 500 Hz
• Heart rate measurement: 30 bpm to 300 bpm
• Measurement accuracy: ±1 bpm
• Filters:
• AC filter: 50 Hz/ 60 Hz/ Off
• DFT filter: 0.01 Hz/ 0.05 Hz/ 0.32 Hz/ 0.67 Hz
• EMG filter: 25 Hz/ 35 Hz/ 45 Hz/ Off
• Low-pass filter: 50 Hz/ 300 Hz/ 270 Hz/ 150 Hz/ 100 Hz/ 75 Hz
• ECG storage format: DAT, SCP, FDA-XML, DICOM, PDF, JPG, BMP, PNG and TIFF
• Power supply: Mains or battery operation
• Battery type: Lithium-ion
• Pacemaker detection:
• 1 lead
• Amplitude: ± 500 μV to ± 700 mV
• Width: 30 μs to 2.0 ms
• Sampling frequency: 80,000 Hz, rhythm derivation

Package contents

• 1 EDAN 12-lead ECG SE-1201 Pro
• 1 mains cable
• 1 ECG cable
• 6 chest electrodes for adults
• 4 extremity electrodes for adults
• 1 lithium-ion battery
• 1 AC/DC mains adapter
• 120 pages printer paper (L 210 x W 140 mm)
• 1 instruction manual

The trolley shown is not included in the package contents.
